Item No.: RS-XF5HP
Chinese 400kg/hr Feeding Capacity Powder Hopper Loaders/ 5HP powder auto loader For South America
E-mail: 15113320579@vip.126.com
Home Page

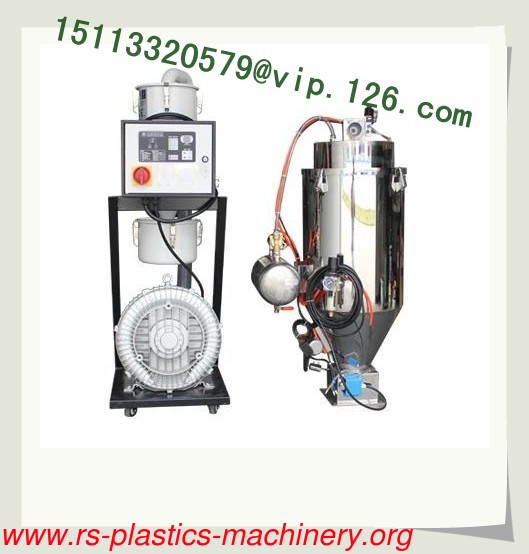

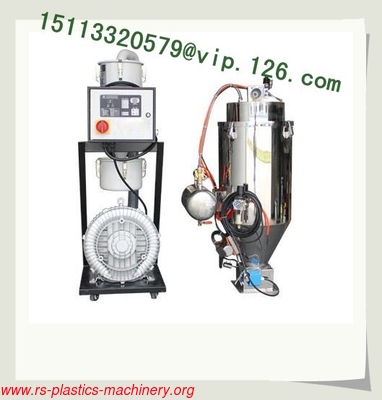

Description of the Auto Powder Hopper Loader
This series powder loader adopted vacuum absorption transported
principle, can be make the particle diameter and all kinds of powder and original granular .which greater than a micron
sent to specified equipment from all kinds of storage containers. Using with profile unit, mixing system, chemical processing equipment, replace
artificial feeding completely, this is the ideal environmental protection powder conveying equipment.
The Automatic Powder Hopper Loader has the following Features,
1. This series on the basis of absorbing the advantages of import prototype design and manufactured
2. Adopting imported cutting dust filter, high strength, good effect of cutting dust, no pollution.
3. Vibration discharge system can prevent powder bypass, make it more smoothly.
4. Adopting pulse compression air blowback cleaning device, port explosion shock the filtering surface, cleaning effect will be better.
5. The aspiratory inlet and suction inlet will be close automatically when counter blowing, without contamination of the environment and human populations.
6, This series adopts absorption and counter blowing clean up at a time, make conveying more efficient, and can be extend the service life of the filter unit.
Specification of the Euro separate type hopper receiver,
| Model |
RS-XF5HP |
RS-XF7.5HP |
RS-XF10HP |
| Conveying Capacity (kg/hr) |
400 |
600 |
800 |
| Hopper Practical Capacity (L) |
40 |
40 |
60 |
| Vortex Pump Power (KW) |
4 |
5.5 |
7.5 |
| Vortex Pump Voltage (V) |
380 |
380 |
380 |
| Air Suction Tube Diameter (mm) |
50 |
50 |
50 |
| Material Suction Tube Diameter (mm) |
38 |
50 |
50 |
Machine color--- blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
