Item No.: RS-XY900G4
China Grey White Separate Type Vacuum Hopper Loader OEM Price/ 900g4 Multi-hopper loader purchasers wanted
contact E-mail: 13590932590@vip.126.com
Home Page

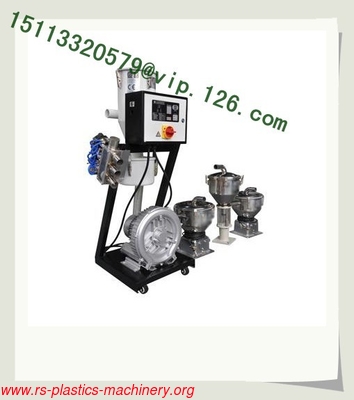

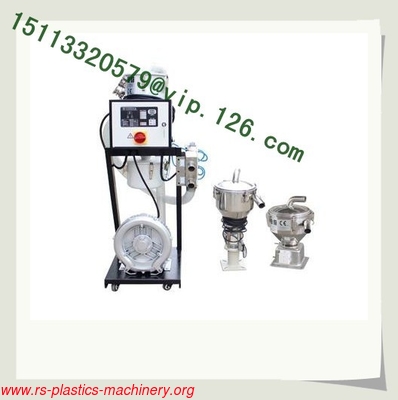

Description of the Multi-station Hopper Loader,
900 MULT I-HOPPER AUTO LOADERS
MULTI-HOPPER AUTO LOADERS FEATURE
l. One main machine controlling several hoppers to save cost and space; Vacuum hoppers and sensor hoppers are alternatjve.
2.Per feet for drying and conveying in one system with simplified systematic structure and high efficiency.
3. Fully automatic microcomputer controlled.
4. Integrated control, easy and safe to operate.
5. Easy maintenance.
Specification of the Multi-station Hopper Loader hopper receiver,
| Model |
RS-XY900G2 |
| Motor |
1.5KW/1.1HP |
| Conveying Capacity (kg/h) |
440 |
| Loading Distance (m) |
4 |
| Static Wind Pressure (mm/h2o) |
2400 |
| Reservoir Volume (L) |
10/7.5*2 |
| Conveying Tube Inner Diameter (mm) |
⊙38 |
| Specification of the Attached Hoses (mm) |
⊙38mm*4m 4pcs |
| Dimension (cm) |
61*37*67 |
| Approx. Net Weight (kg) |
55 |
| Model |
RS-XY900G3 |
| Motor |
2KW/1.5HP |
| Conveying Capacity (kg/h) |
500 |
| Loading Distance (m) |
4 |
| Static Wind Pressure (mm/h2o) |
2400 |
| Reservoir Volume (L) |
10/7.5*3 |
| Conveying Tube Inner Diameter (mm) |
⊙38 |
| Specification of the Attached Hoses (mm) |
⊙38mm*4m 6pcs |
| Dimension (cm) |
54*56*123 |
| Approx. Net Weight (kg) |
58
|
| Model |
RS-XY900G4 |
| Motor |
3KW/2.2HP |
| Conveying Capacity (kg/h) |
590 |
| Loading Distance (m) |
5 |
| Static Wind Pressure (mm/h2o) |
2400 |
| Reservoir Volume (L) |
10/7.5*4 |
| Conveying Tube Inner Diameter (mm) |
⊙38 |
| Specification of the Attached Hoses (mm) |
⊙38mm*4m 8pcs |
| Dimension (cm) |
54*62*123 |
| Approx. Net Weight (kg) |
66 |
Machine color--- blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
