Item No.: RS-X800G
China 800G Automatic Hopper Loader/ Plastic Vacuum Hopper Loader OEM Plant/ Separate plastic hopper loader For UK
contact E-mail: 13590932590@vip.126.com
Home Page

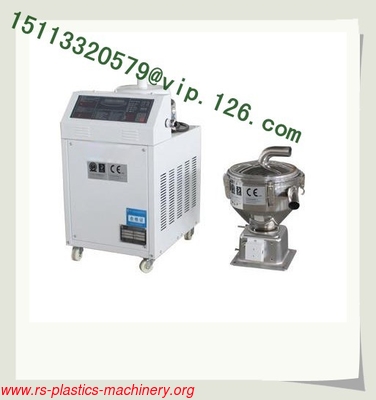

Description of the Separate-Vacuum hopper loader,
Separate-vacuum hopper loaders are suitable for conveying material over long distance. The material hopper is installed away from the main unit and use of a stainless steel hopper eliminates material contamination. Superior suction power is continuously available from the high efficient vacuum blower. Each model is completed with motor overload protector to prolong its life, and is also fitted with a material shortage alarm.
The Separate-Vacuum hopper loader has the following Features,
800G DETACHABLE AUTO LOADERS
DETACHABLE AUTO LOADERS FEATURE
l.Main machine separated from the hopper,easy and safe to operate.
2.Independent filter for easy cleaning.
3.Stainless hopper.
4. Microcomputer control.
5. Alarm for overload and short of material.
6.700G equipped with high-speed rectifier motor with delicate size and strong suction force-suitable for new materials.
7.800G/800G2 with induction high pressure pump--with low noise and long service time.
8.800G and 800G2 are designed with auto reverse cleaning devices.

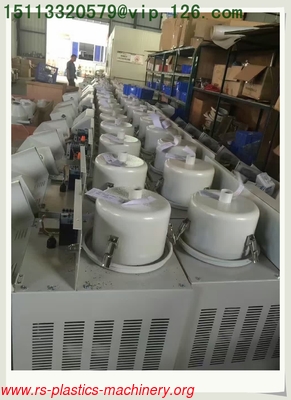

800G Auto Loader Under Production
Specification of the hopper loader,
| Model | RS-X800G |
| Motor | Type | Induction |
| Specification | 1KW/1.5HP 3⊙ |
| Conveying Capacity (kg/h) | 450 |
| Loading Distance (m) | 4 |
| Static Wind Pressure (mm/h2o) | 1800 |
| Reservoir Volume (L) | 7.5 |
| Conveying Tube Inner Diameter (mm) | ⊙38 |
| Specification of the Attached Hoses (mm) | ⊙38mm*4m 2pcs |
| Dimension (cm) | Main Frame | 42*38*64 |
| Hopper | 45*32*45 |
| Approx. Net Weight (kg) | Main Frame | 47 |
| Hopper | 7 |
Machine color--- blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
