Item No.: RS-X400G
China Plastic Material Hopper Loader for Plastic Extruder/Plastic auto hopper loader For Western Europe
E-mail: 15113320579@vip.126.com
Home Page
Description of the hopper loader,

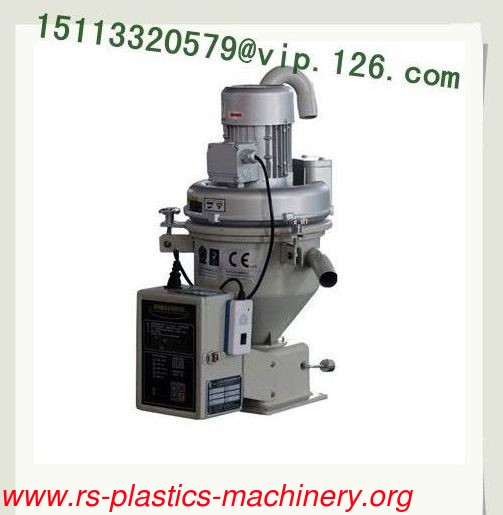

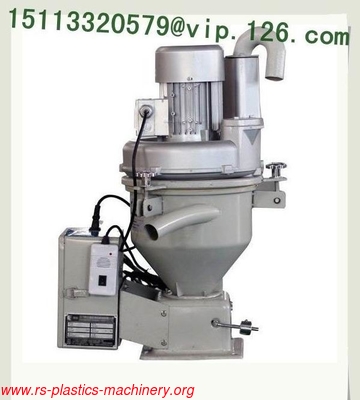

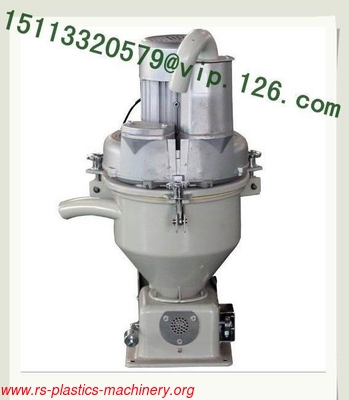

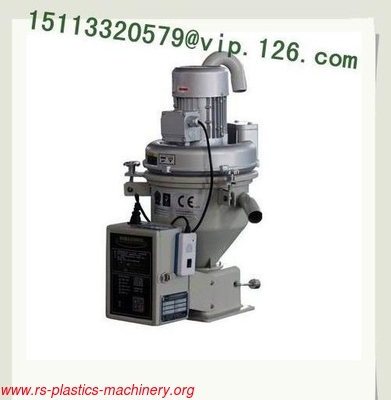

STAND ALONE TYPE AUTO LOADERS
STAND ALONE TYPE AUTO LOADERS FEATURE
With small footprint and low weight,available of being placed directly onto other machines or containers for auto loading. Microcomputer controlled.
Alarm for overload and lack of material.
300G equipped with high-speed rectifier motor with delicate size and strong suction force-suitable for new materials. 400G with induction high pressure pump--with low noise and long service time.
Cable control board design-easy to set and control with distance.
Filter for air and dust.
Specification of the 400G auto hopper loader
| Model |
RS-X400G |
| Type |
Induction |
| Specification |
0.75KW/1HP 3⊙ |
| Conveying Capacity (Kg/h) |
330 |
| Loading Distance (m) |
4 |
| Static Wind Pressure (mm/h2o) |
1400 |
| Reservoir Volume (L) |
7.5 |
| Conveying Tube Inner Diameter (mm) |
⊙38 |
| Specification of the attached Hoses (mm) |
⊙38mm*4m 1PC |
| Dimension (cm) |
45*37*66 |
| Approx. Net Weight (Kg) |
27 |
300G Auto Loader Under Production
Machine color--- blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more choice of hopper loaders, plastic machinery products, please contact us for E-catalogue and Price Lists!
