Item No.: RS-X800G2
Detachable hopper loader 800G2 Supplier/plastic material auto loader/Vacuum hopper loader good price
contact E-mail: 13590932590@vip.126.com
Home Page
Description of the Separate-Vacuum hopper loader,
Separate-vacuum hopper loaders are suitable for conveying material over long distance. The material hopper is installed away from the main unit and use of a stainless steel hopper eliminates material contamination. Superior suction power is continuously available from the high efficient vacuum blower. Each model is completed with motor overload protector to prolong its life, and is also fitted with a material shortage alarm.
The Separate-Vacuum hopper loader has the following Features,
800G DETACHABLE AUTO LOADERS
DETACHABLE AUTO LOADERS FEATURE
l.Main machine separated from the hopper,easy and safe to operate.
2.Independent filter for easy cleaning.
3.Stainless hopper.
4. Microcomputer control.
5. Alarm for overload and short of material.
6.700G equipped with high-speed rectifier motor with delicate size and strong suction force-suitable for new materials.
7.800G/800G2 with induction high pressure pump--with low noise and long service time.
8.800G and 800G2 are designed with auto reverse cleaning devices.

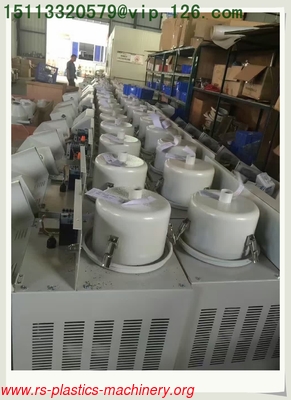

800G Auto Loader Under Production
Specification of the hopper loader,
| Model | RS-X800G2 |
| Motor | Type | Induction |
| Specification | 1.5KW/2HP 3⊙ |
| Conveying Capacity (kg/h) | 500 |
| Loading Distance (m) | 5 |
| Static Wind Pressure (mm/h2o) | 2400 |
| Reservoir Volume (L) | 7.5 |
| Conveying Tube Inner Diameter (mm) | ⊙38 |
| Specification of the Attached Hoses (mm) | ⊙38mm*5m 2pcs |
| Dimension (cm) | Main Frame | 50*40*72 |
| Hopper | 45*32*45 |
| Approx. Net Weight (kg) | Main Frame | 50 |
| Hopper | 7 |
Machine color--- blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
For more choice, please click the following,
Separate vacuum hopper loader
Euro hopper loader
Automatic hopper loader
High power hopper loader
Multi-hopper loader
Venturi loader
