Item No.: RS-TCD
3 in1 desiccant wheel Rotor source dehumidifier dryer supplier/ plastic dryer of injections reduce product defect ratio
If you need the price of the 3-in-1 dehumidifying dryer, please do send send an E-mail to:
13590932590@vip.126.com
Home Page
Description of the dryer dehumidifier conveyer all-in-one compact dryer
The "Three-in-One" compact dryers combine drying, dehumidifying, and two-stage conveying function in a single unit. They are suitable for drying hygroscopic engineering plastics, such as PA, PC, PBT, PET etc. A honeycomb rotor is used in the dehumidifying section.

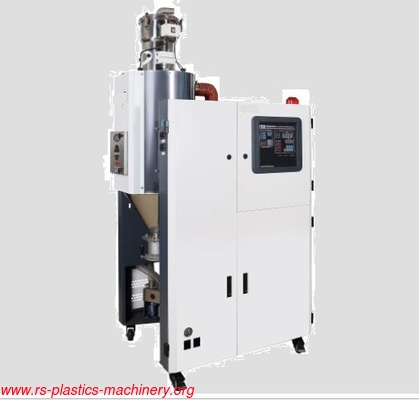

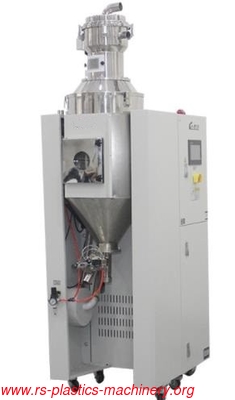

3 in 1 honeycom dehumidifier dryer semi-close type ;

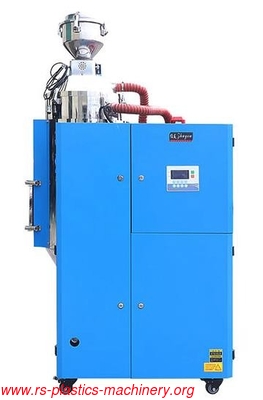

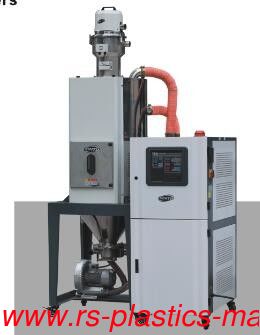

3 in 1 honeycomb dehumidifier dryer open type ;
Features of the dryer dehumidifier conveyer 3-in-1 dryer,
TCD series compact dryers are equipped with honeycomb rotor for dehumidifying. They have two kinds of design: Fully-integral and semi-integral depending on the size.
Suitable for drying hygroscopic engineering plastics such as PA, PC, PBT, PET etc.
Integration of dehumidifying, drying, and two-stage conveying functions in a single unit. Three-stage conveying is also available as an option.
Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption which maintaining a steady drying effect.
Closed-loop conveying system eliminates the possibility of moisture re-absorption during material conveying.
The dehumidifying section of TCD series features two condensers to ensure a low return air temperature and low dew-point.
Equipped with pneumatic shut-off valve to ensure no material remains in the material line after each loading cycle.
Material processing is controlled via microprocessor as standard with touch screen PLC control as an option for centralized and automatic operation.
Dew-point monitor can be fitted to monitor and display dry air dew-point.
Specification of the dryer dehumidifier conveyer all-in-one dryer,
|
Model
|
RS-TCD-
|
450L/300H
|
600L/300H
|
600L/400H
|
750L/400H
|
750L/500H
|
900L/500H
|
900L/700H
|
1200L/700H
|
|
Drying System
|
|
|
Process Heater Power(KW i
|
|
15
|
3
|
18
|
18
|
21
|
21
|
24
|
24
|
|
Process Blower Power [ KW)
|
|
2.4
|
2.4
|
3.75
|
3.75
|
5.5*
|
5.5*
|
5.5
|
5.5
|
|
Drying Hopper Capacity ( L)
|
|
450
|
600
|
600
|
750
|
750
|
900
|
900
|
1200
|
|
Dehumidifying System
|
|
|
Regen. Heater Power kw
|
|
7.2
|
7.2
|
7.2
|
7.2
|
10
|
10
|
10
|
10
|
|
Regen. Blower Power( kw )
|
|
0.75
|
0.75
|
0.75
|
0.75
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Dry Air Capacity (m3/hr)
|
|
300
|
300
|
400
|
400
|
500
|
500
|
700
|
700
|
|
Conveyinng system
|
|
|
|
|
|
|
|
|
|
|
Conveying Blower Power KW
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5 2.4
|
2.4
|
2.4
|
|
Dia. of Conveying Hose(inch )
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5 2
|
2
|
2
|
|
THR-U-E Hopper Receiver( L )
|
12
|
12
|
12
|
12
|
12 24
|
24
|
24
|
|
THR-U Hopper Receiver ( L )
|
12
|
12
|
12
|
12
|
12 24
|
24
|
24
|
|
Dimensions
|
|
|
H(mm)
|
2480
|
2380
|
2380
|
2610
|
2760 2640
|
2640
|
3070
|
|
W(mm)
|
1490
|
1745
|
1745
|
1745
|
2140 2140
|
2140
|
2140
|
|
D(mm)
|
1255
|
1255
|
1255
|
1255
|
1380 1380
|
1380
|
1380
|
|
N.W. Kg
|
600
|
fiSK
|
640
|
690
|
710 820
|
850
|
900
|
Note,
1), “*” stands for by-pass at blower air outlet;
2), Power supply: 3 phases, 380V, 50Hz；
Machine color--- blue or grey white, or others;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
